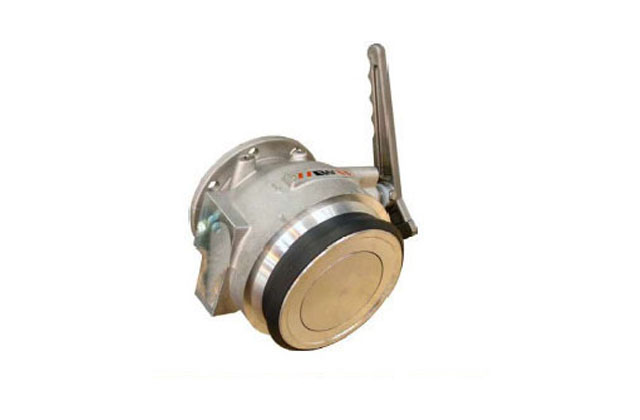

F5001 | OPENABLE API ADAPTOR
API adaptors with a one-piece body, hard anodised indexable nose ring and flat bottom.
FEATURES AND BENEFITS :

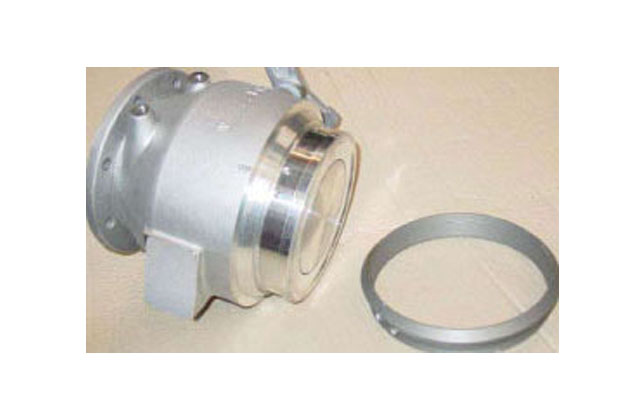

● Hard anodised replaceable nose ring that can be indexed through four positions for extended life.
● Flat bottom of valve body ensures complete product drainage and minimize contamination.
● Two-stage fixed aluminium handle gives positive indication of valve position.
● Conforms to API RP1004 for total compatibility with API couplers.
● Lightweight die cast aluminium construction for increased payloads with strength.
● Viton seals are standard for compatibility with high-octane fuels and additives.
● Hydrodynamic design minimizes pressure drop for high flow rates.
● Stainless steel operating shaft, cam and poppet stem for durability.
● Top mounting for hose interlock.
● Weight: 4.40 kg
APPROVALS:
● API RP1004
● CEN.

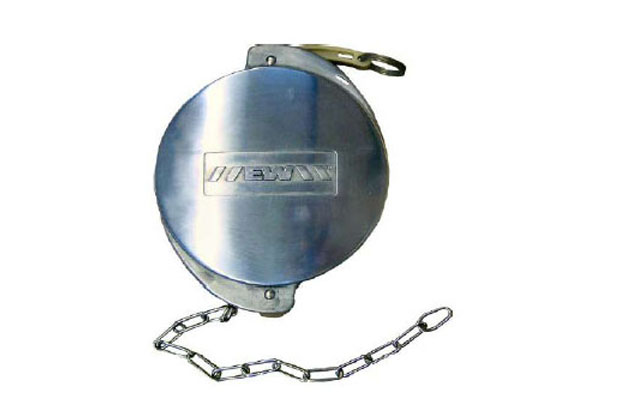

F0499 | API DUST CAP
The Emco Wheaton API Dust Caps are made from die cast aluminium and are easy to use.
FEATURES AND BENEFITS :
● Suitable for all of the Emco Wheaton series of API adaptors.
● Protects poppet face of API adaptor and prolongs life of seals.
● High quality die cast body and component materials to international standards are used for durability and performance.
● Automatic sealing of the P/V vent in a roll over situation prevents dangerous and costly spillage.
● Radial cam and lug design for one-handed operation.
● Compact, glass-filled nylon cams reduce wear and eliminate the risk of corrosion.
● Buna seal fitted as standard.
● Stainless steel chain supplied as standard for attachment to API adaptor.
● Polished surface.
● Seal tag hole for sealed delivery and security.
● Weight: 1.10 k.
APPROVALS:
● Fits to API RP1004 Adaptor

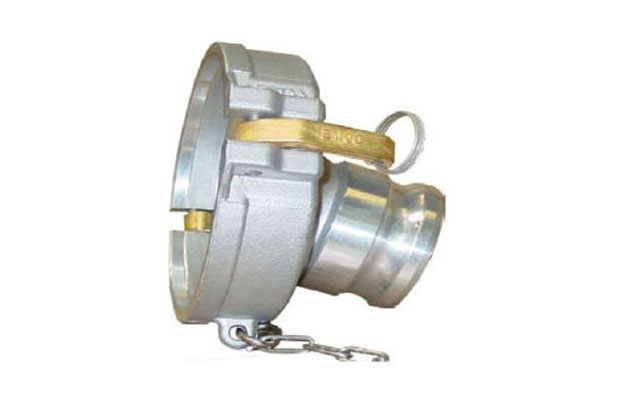

F0459 | API GRAVITY DROP ADAPTOR
The F0459 range of API Gravity Drop Adaptors has been specifically designed for use with API adaptors when discharging product.
FEATURES AND BENEFITS :
● High quality, lightweight die cast body.
● Brass cams reduce wear on API nose and eliminate corrosion.
● Internal shoulder to grip adaptor nose and support weight of product hose.
● Stainless steel chain supplied as standard for attachment to API adaptor.
● Buna seal fi ted as standard.
● 2½“, 3” and 4” surelock™ outlet variants available.
● 3“ and 4“ threaded outlet variants available.
● Suitable for all API Adaptors which conform to RP1004..
APPROVALS:
● Conforms to API RP1004
● Emco Wheaton Surelock™ conforming to MIL-C-27487 specification.

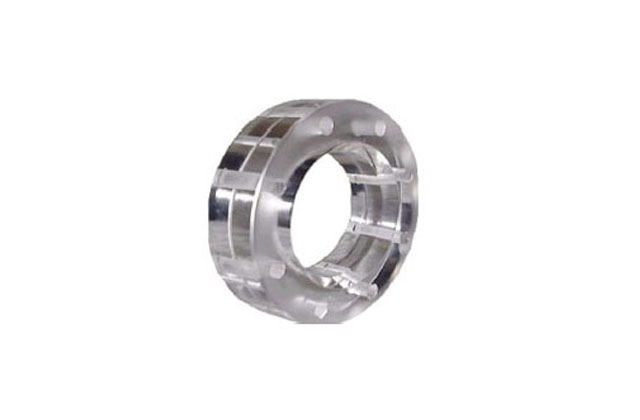

F0091- 00564151 | 4” TTMA SIGHT GLASS
Easy to fit by, simply, positioning between the pipe flange and the API Adaptor or Faucet Valve.
FEATURES AND BENEFITS :
● Transparent, thick section for clear view of product in pipe.
● Compatible with petroleum products.
● Tough and durable made from clear cast annealed acrylic.
● 4” TTMA flange drilling for compatibility.
-
