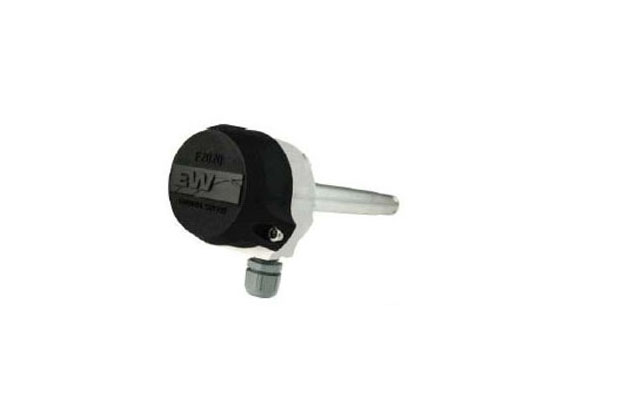

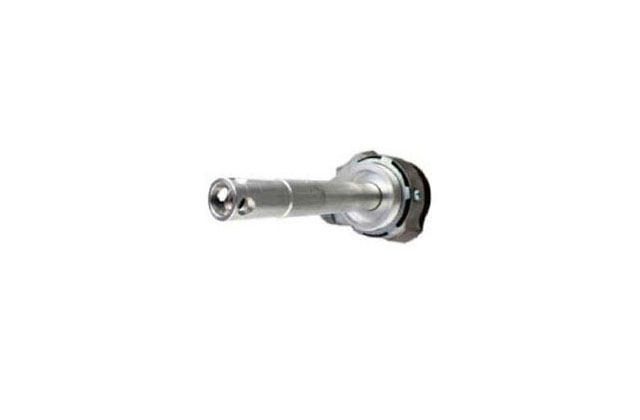

The Emco Wheaton F2020 Overfill Prevention System incorporates the latest fast response optic self-checking electronics for preventing the overfilling of bottom loaded petroleum tanker compartments during the terminal loading process. If the F2020 detects an overfill it will stop the flow, preventing a spill.
FEATURES AND BENEFITS :
● Self-checking electronics for maximum reliability andendurance 5 wire and 2 wire system options
● 2 wire for tankers with up to 8 compartments compatible with 10 pin socket only Connects each compartment to the system individually
● 5 wire for tankers with up to 12 compartments Compatible with 6 and 10 pin socket only Connects to the system through a series o fcompartments
● IP protection 65ºC
● Fluoro-elastomer seals compatible with petroleumproducts
● Housing protection to IP66 with impact rating betterthan 09 (10 joule impact) for maximum durability
● Compatible with all known systems on the market
APPROVALS:
● EN 13922
● API RP-1004
● EN 13922:2003 regulations

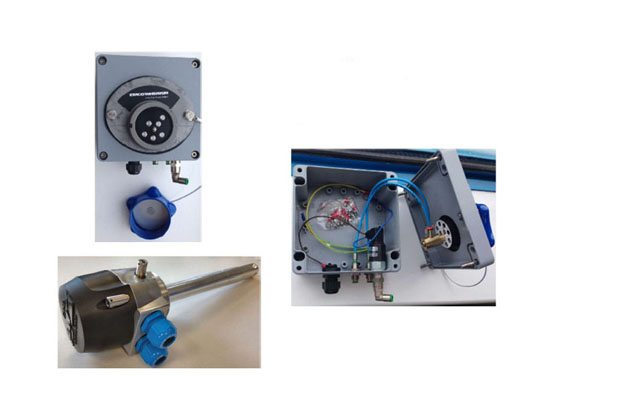

FEATURES AND BENEFITS :
● Aluminium with stainless steel pins and
● Blue Polymer Dust cap
● Security sealing
● Interlock Sockets – pressure switch for permissive signal & air interlock for brakes
