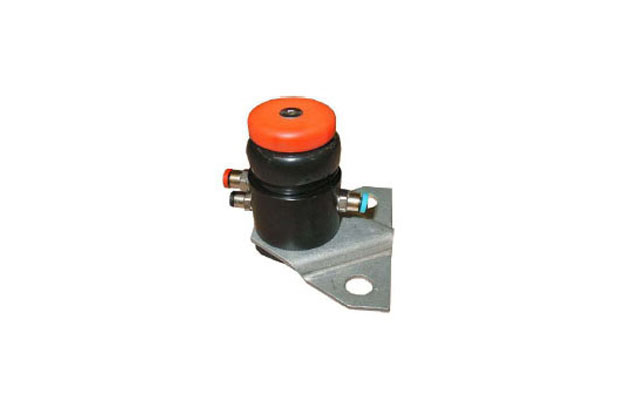

F0904 | EMERGENCY SHUT DOWN AIR VALVE
Lightweight, compact and clearly visible air system Emergency Shut Down (ESD) valves, designed for mounting at any desired position on the tank truck.
FEATURES AND BENEFITS :
● Push and leave, simple and positive control.
● Remote emergency shut off.
● Red button – clear indication as emergency device.
● Supplied with mounting bracket – holes match Emco Wheaton 24 hole.
● F337, F338 , F355 and F512 manhole cover bolt spacing.
● Connects in series – one or more can be fitted in desired positions e.g. tanker top, off side and rear.
● 4mm or 6mm push-in fittings are integral allowing quick fit /removal.
● Durable, weather proof, delrin construction.
● Weight: 0.12 kg.
APPROVALS:
● F0904-001 4 mm push in fittings
● F0904-002 6 mm push in fittings

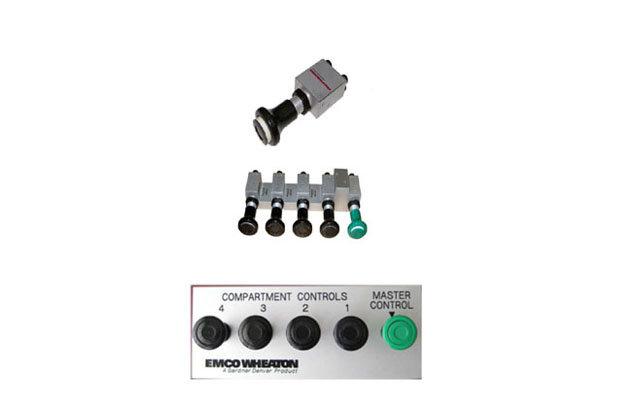

F0905161 | AIR CONTROL VALVE
Lightweight and compact Air System Control Valves designed for panel mounting. Normal applications are as control devices for actuating pneumatic valves, road tanker bottom loading and vapour return systems.
FEATURES AND BENEFITS :
● Simple and positive control - pull for ON and push for OFF.
● Remote emergency shut off via integral air port.
● Visual indication of valve open/close status.
● Modular installation caters for individual compartment valve control on multi-compartment tankers.
● Panel mounting for neat and compact installation.
● 6mm push-in fittings are integral and are at the rear of the F0905 allowing quick fit/removal and a clear operating area.
● Durable acetal polymer construction.
● Weight: 0.12 kg
-
