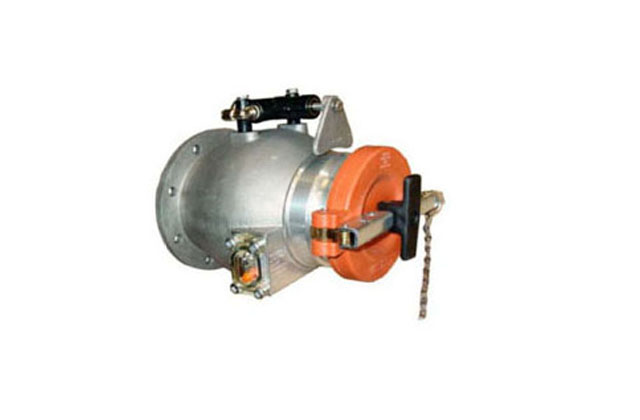

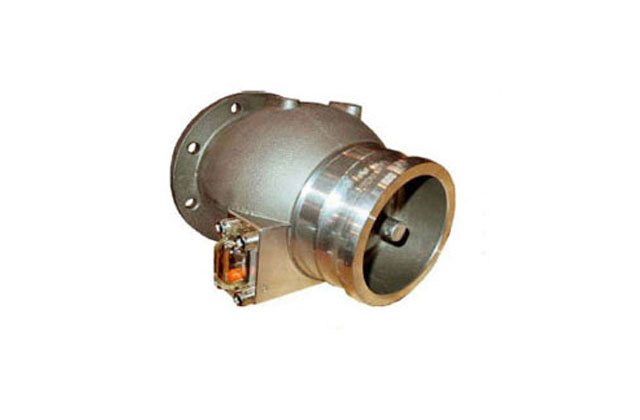

Designed to minimize pressure drop and maximize efficiency of the recovery of vapours during stage 1A and 1B vapour recovery operations, this valve is internationally regarded as the bench mark for poppeted vapour recovery adaptors.
FEATURES AND BENEFITS :
● High flow capacity and low pressure drop assists recovery of vapours.
● Multi-compartment loading at high flow rates with vapour return is possible without exceeding PV vent pressure ratings.
● Sight glass visually alerts personnel of liquid contamination.
● Reduced risk of vapour loss from backpressure of vapour.
● Viton seals fitted as standard. Lightweight aluminium construction for increased payloads – 2.91 kg.
● Screw plug fitted to drain liquid from adaptor.
● Surelok TM 4” male standard to A-A-59326 (Mil-C-27487) specification cam and groove connection.
APPROVALS:
● SurelokTM 4” male standard to A-A-59326 (Mil-C-27487) specification
● API RP1004

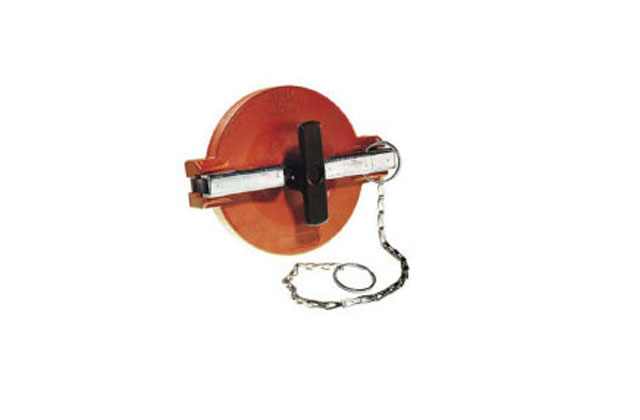

The Emco Wheaton Vapour Recovery Adaptor Dust Cap is suitable for use with 4” Surelok™ Vapour Recovery Adaptors.
FEATURES AND BENEFITS :
● Quick release design for single handed opening.
● Heavy-duty chain supplied as standard for attachment to adaptor.
● Protects poppet face of adaptor and prolongs life of seal.
● Suitable for any 4” Surelok™ adaptors manufactured to Mil-C-27487.
● Colour coded orange.
● Lockable with padlock or seal.
● Weight: 0.53 kg.
APPROVALS:
● Fits to Surelok TM 4” male standard to Mil-C-27487 specification

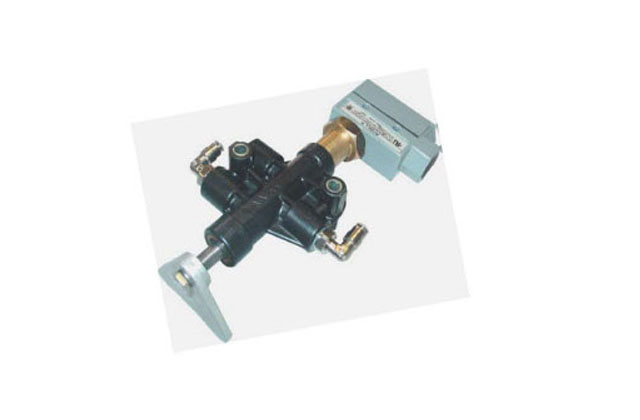

The F0567 Air Interlock is designed for installation on API adaptors, vapour adaptors or on its own, when it is used for interlocking vehicle brakes or other pneumatic components with a guard bar or door actuation.
FEATURES AND BENEFITS :
● Strong composite body.
● Electrically continuous.
● Stainless steel operating shaft.
● Reversible mounting for different height requirements.
● Adjustable button.
● Different end buttons are available to suit the application.
● Viton or buna seals.
● Brass thread inserts for air fittings installation.
● Position Switch Kit can be supplied as an optional extra.
STANDARD VARIANTS :
● F0567-121 Viton seals for use with Vapour Adaptor (includes 2 x 4mm pif)
● F0567-221 Viton seals for use with Vapour Adaptor (includes 2 x 6mm pif)4

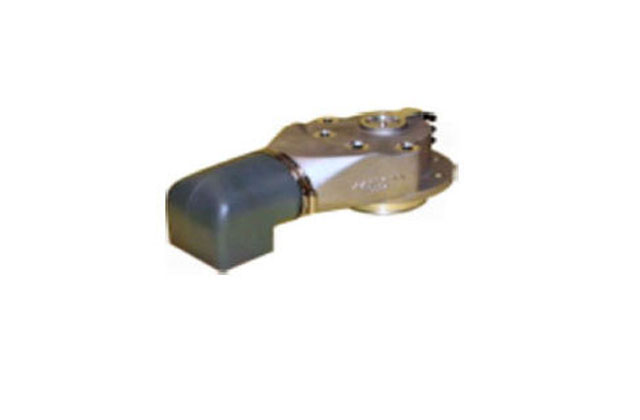

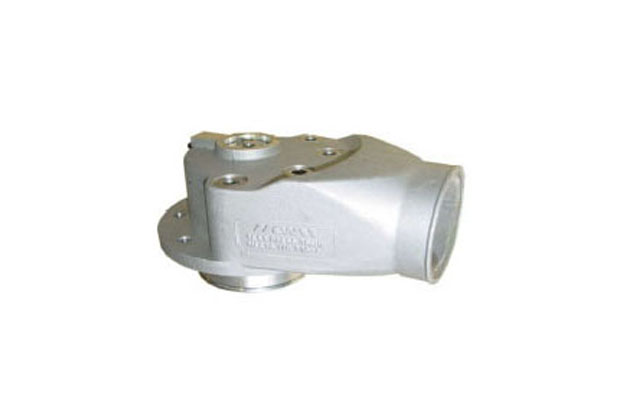

A compact, low profile and lightweight body with exceptionally high flow characteristics, makes this valve the ideal choice for either sequenced or non-sequenced compartment vent requirements.
FEATURES AND BENEFITS :
● High flow, aerodynamic design.
● Low profile body.
● Pneumatic sequenced or non-sequenced operation variants available.
● Unique piston design for maximised flow rate and low-pressure drop.
● Poppet opens into the tank to prevent surge pressure leakage and loss of product in the event of a tank roll over.
● Tapered seat design with viton O-ring ensures leak tight seal.
● High quality die cast body and component materials, to international standards, are used for durability and performance.
● Stainless steel internal components for increased corrosion resistance.
● Lightweight 2.12 kg compact design.
● Suitable for mounting directly on F0512 20” manhole covers or separate flange pad.
● Fitting through bolt TW (CEN) flange mounting or TTMA flange studded.
● Air connections are 4mm or 6mm push in or 1/4“ NPT.
● Gauze - available with flame retardant stainless steel gauze.
APPROVALS:
● Tested and certified to EN13082: 2001. Test pressure = 5 bar

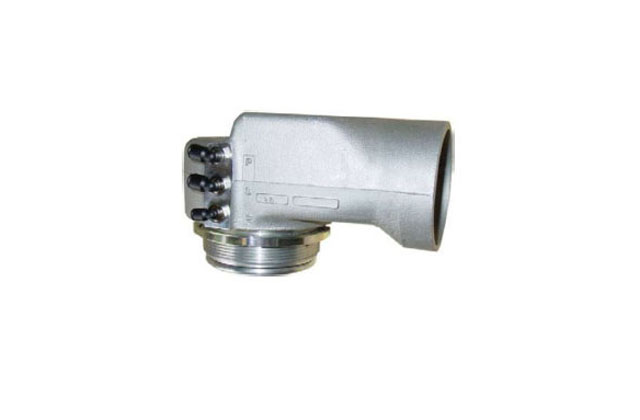

FEATURES AND BENEFITS :
● Pneumatic operation.
● Sequenced and non-sequenced variants available.
● Unique piston design for maximised flow rate and low-pressure drop.
● Poppet opens into the tank to prevent surge pressure leakage and loss of product in the event of a tank rollover.
● Tapered seat design with viton O-ring ensures leak tight seal.
● High quality die cast body, and component materials, to international standards, are used for durability and performance.
● Stainless steel internal components for increased corrosion resistance.
● Lightweight 1.58 kg compact design.
● Suitable for mounting directly onto F0335 16” manhole covers or separate mounting pad.
● Backnut with lock screw for security.
● Air connections are 4mm or 6mm push in type.
● Fitting is simple - the valve is inserted into a suitable hole and the backing nut is tightened and locked. It can be fitted directly to the Emco Wheaton F0355 manhole cover.
APPROVAL:
● Tested and certified to EN13082: 2001. Test pressure = 5 bar
