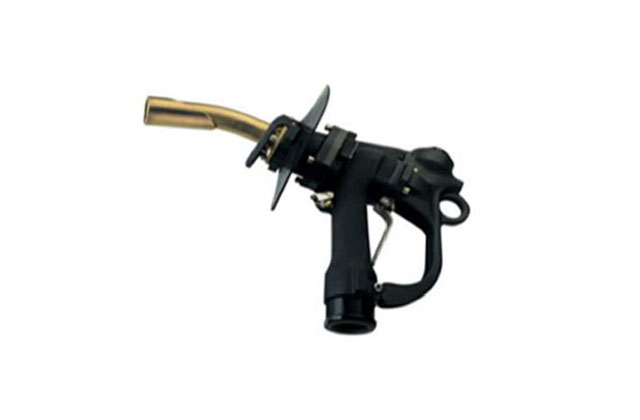

TODO FUELLING NOZZLE - Fuelling Nozzle
The TODO fuelling nozzle is designed to withstand the pressure generated during a high-volume delivery from the tanker to the loading station in complete safety.
They boast a high flow rate and low-pressure drop, ensuring efficient loading and unloading, facilitating a shortened turnaround time,
more product delivered in a quicker time and, therefore, more profits for your organisation.
The world-leading technology behind TODO’s fuelling nozzle offers a tight seal and connection, secured further by the handle locking when in the closed position.
This, coupled with the ergonomic design of all TODO nozzles, ensures that product loss through human error is significantly reduced.
Users simply open the valve with the thumb trigger to begin fuel delivery and reverse it to stop - it's that easy!
Benefits & Features of TODO Fuelling Nozzle :
Their aluminium alloy body, strong swivel and robust handle make TODO fuelling nozzles highly reliable even after long-term use.
Their robust manufacture and proven dependability within the industry heavily reduces maintenance and replacement costs.
TODO fuelling nozzles have been designed, innovated and manufactured to deliver high volumes of product at full bore with total security – ensuring efficiency and high performance whilst also offering you total peace of mind.
We can back this ease of use claim with a proven safety factor of 1:5 across all TODO fuelling nozzles
Their main benefits can be summarised as follows :
● Safe and simple operation
● Full bore blow
● Low-pressure drop
● Quality construction
Variants & Specifications
TODO fuelling nozzles are available in 2" sizes and are made from high-grade aluminium EN AW 6262 T6 with brass CW614N attachments for the best possible performance.
Max. Working Pressure:up to 10 bar (145 psi)
working Temperature Range: -20 to +80 degrees C (-4 to +176 Fahrenheit)
Threads: BSP (according to ISO 228), NPT (according to ANSI B1.20.1), others available upon request
Specials: TODO Snap, W2"-7
Materials: Aluminium body, Brass attachments
O-ring Grades: Viton (FKM)
Applications
Typically, TODO fuelling nozzles are used for bus refuelling, but in a changing environment with never-ending technological development,
they see wider use as customers switch to more advanced couplings.
They have previously also been used to deliver paint. If you are unsure about the suitability of this product for your specific application, please contact TODO here
For further information on TODO's Fuelling Nozzles, please visit the TODO website here, or don't hesitate to call us on +6221 - 458 76975.

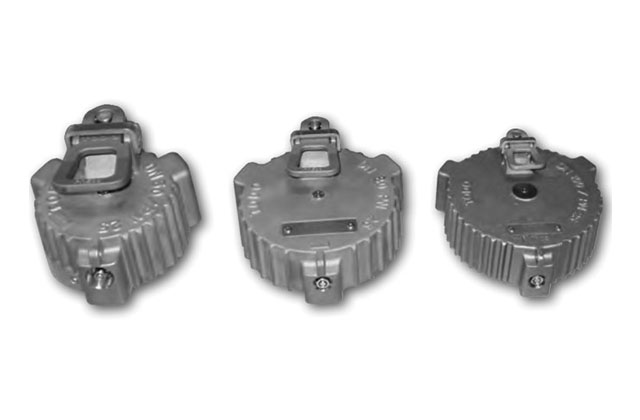

PRESSURE TIGHT CAPS - Pressure Caps
TODO has used its years of industry experience and knowledge to collaborate with major European chemical companies to design and manufacture their TODO Safety Pressure Tight Caps.
Their industry-leading design and technology is able to guarantee containment and complete operational safety.
Their PTCs are specifically designed to enhance operator safety and containment security in chemical and gas transport.
They have been equipped with a red O-ring to alert operators to the existence of pressure behind the cap that, in turn, gives a warning to other potential upstream value failures.
This ensures handler safety and total peace of mind as no other existing closure technology comes close.
Features & Benefits :
TODO's Pressure Tight Caps are an efficient solution designed to protect operators and profit margins.
They are capable of maintaining pressure in the event of leakage but will also quickly release if manually removed, promoting smooth and easy operation.
This helps to eliminate any risk of product leakage in the event of a line fault, assuring colleagues' safety and guaranteeing complete peace of mind.
Some of the most impressive features are:
● Can be used as a third official point of closure when other safety systems are not in use
● The PTC locks automatically in either direction but requires a deliberate action to disconnect, guaranteeing safe and efficient operation within all applications
● Suitable for use with all commonly used wire and plastic custom seals
● Installed with red O-ring to indicate line failure
● Automatic depressurisation that reduces any static pressure upstream of the cap upon operation
● The PTC is certified as a full second or third closure, depending on the application. The cap can be used to replace other closure methods such as valves
All of these unmatched market-leading features promote safety without compromising ease and efficiency, making the TODO Safety Pressure Tight Caps the first choice for a range of applications.
Variants & Specifications
These Safety Pressure Tight Caps are built with high-grade stainless steel and come in 2-4” sizes.
This product can be fitted with an almost unlimited choice of O-ring grades, making them flexible to a wide range of different industry applications.
Max. Working Pressure: Up to 25 bar (363 psi)
working Temperature Range: - 20 to +80 degrees C (-4 to +176 Fahrenheit)
Size: 2" (DN50), 3" (DN80), 4" (DN100)
Materials: Stainless steel only – made by using 316L grade stainless steel for exceptional durability even when handling aggressive chemicals
O-ring Grades: Nitrile (NBR or Buna), Viton (FKM), EPDM, Kalrez (FFKM), FMVQ, Chemraz (FFKM)
Applications
TODO's Safety Pressure Tight Caps are renowned for their ability to ensure operator safety and the protection of the stored product to make sure your time is spent efficiently.
They are well-used and trusted by many major companies in the chemical, oil and gas and LPG sectors, often involved in road and tanker applications.
For further information on TODO's Pressure Tight Caps, please visit the TODO website here, or don't hesitate to call us on +6221 - 458 76975.
