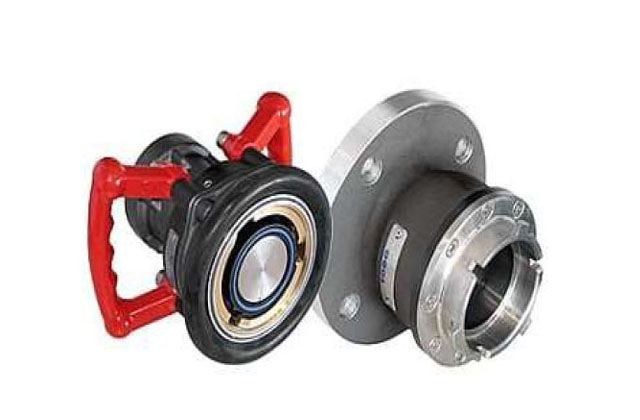

The TODO-45 DryBreak Aviation Fuel Coupler is an ISO 45 compliant ground and associated hose unit for aviation refuelling. While made to industry-standard dimensions, it's not used for under-wing refuelling but instead by fuel suppliers when loading and unloading at a distribution centre or when connecting distribution vehicles at airfields.
TODO Aviation fuel transfer couplings are built to take the strains of rapid fuelling activities in the most demanding applications.
It is the first choice of fuel transfer equipment with decades of experience that allow them to design and manufacture couplings for safe and spillage free bunkering of aviation, ensuring easy and efficient user operation and complete peace of mind.
FEATURES AND BENEFITS :
The TODO-45 DryBreak Aviation Fuel Coupler offers market-leading savings as well as improved safety features for organisations working in the aviation sector.
Simple operation allows for the reduction of human error and an improved turnover time. Some of its benefits include:
● Aviation specific design
● High-grade materials
● No external operational components
● ISO 45 and MS24484 compliant
● Robust design and construction
● Extremely reliable due to very few moving parts
● Automatic valve opening on connection and disconnection
● Minimal residual loss on disconnection
● Economical alternative to ISO 45 standard hose couplers
● Simple single-action operation with no levers or switches to operate, making user handling easy and efficient
● Will connect and disconnect under pressure and flow where necessary
● Guaranteed valve closure prior to disconnection
Available Variants & Technical Information
This TODO product is available in a 2.5" size and features aluminium externals and stainless steel internals.
TODO is committed to utilising the most appropriate materials to suit the aviation sector to ensure reliable connection and no contamination.
The TODO-45 aviation refuel coupling is capable of transferring up to 3,000 litres per minute (790 gallons per minute).
This allows quick transfer times while its built-in safety features ensure no product is lost.
Max. Working Pressure: Up to 10 bar (145 psi)
Product Test Pressure: Up to 15 bar (218 psi)
working Temperature Range: -20 to +80 degrees C (-4 to +176 Fahrenheit)
Sizes:2.5" (DN65)
Mounting: Thread or flanged variants available
Materials: Aluminium used is EN AW 6262 T6, and Stainless steel is 316 L grade
O-ring Grades: Viton (FKM), FMVQ
Applications
TODO's 45 DryBreak Aviation Fuel Couplers are favoured by many organisations in the commercial, offshore and military aviation sectors.
While not used for under-wing refuelling, this product is often relied on to handle and transfer fuels, whether at an external distribution centre or on the airfield.
TODO supports major airports worldwide as their TODO-45 is compliant with ISO 45, MS24484, STAGNAG 3105 and British Aerospace Specification 2C14.
You can view the TODO Aviation Webinar on TODO website.where product experts run through TODO's aviation range and explain the benefits for businesses handling different grades of fuel.
For further information on the TODO-45 DryBreak Aviation Fuel Couplers, please visit the TODO website here, or don't hesitate to call us on +6221 - 458 76975.
