TODO's NGX BreakAway coupling is designed to eliminate spillages and equipment damage when operators fail to disengage after loading or unloading.

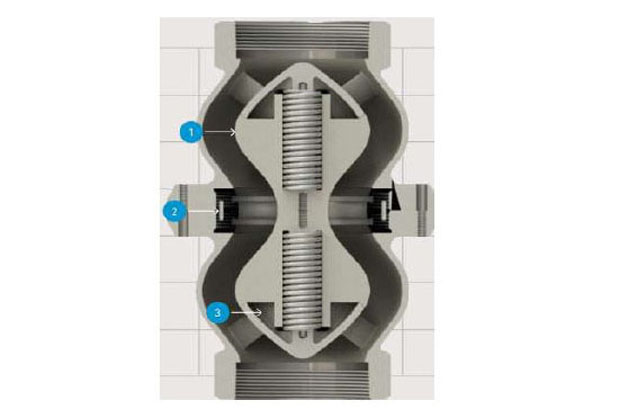

When subject to excessive forces, the NGX's break pins shear, causing the pistons to spring forward to shut either side of the connection.
This feature helps to keep operators safe whilst also minimising product losses and costly downtime.
All TODO BreakAway couplings are renowned across a range of industries for their excellent reliability, simple service and maintenance, and minimal product loss on disconnect.
The NGX BreakAway coupling has been expertly innovated to provide a foolproof service, ensuring total user safety and peace of mind.
The entirety of the NGX series offers flow optimisation with the latest technology in handling and performance to bring you an industry-leading range of Safety BreakAways.
FEATURES AND BENEFITS :
The NGX BreakAway coupling is an efficient, high-performance piece of equipment suitable for a wide range of applications. Some of its main benefits include:
● Available in 2-4" sizes
● Market-leading flow rate and low-pressure drop, which allows for faster loading/unloading due to the optimised flow rates offered
● Simple to retrofit onto Loading Arms
● Easy On-Site Reset allows you to save time and money
● Operates independently of shut off systems safely
● Encapsulated shear bolts
● The release function works at any angle of force
● Internal redesign and new seal placement have resulted in reduced maintenance
● Shielded spring design for zero flow interruption
Variants & Technical Information
The NGX BreakAway coupling improves safety and minimises losses when handling expensive or hazardous products.
NGX BreakAway coupling can be made with aluminium or high-grade stainless steel and fitted with a variation of O-ring grades to suit your specific industry needs.
All units are equipped with 3mm pins which typically offer the best stress resistance. However, changes and adjustments can be made for an intended application as with all TODO products.
working Temperature Range: -20 to +80 degrees C (-4 - to +176 Fahrenheit)
Max. Working Pressure: Up to 40 bar (580 psi)
Product Test Pressure:Up to 60 bar (870 psi)
Certification: 2014/68/EU - Pressure Equipment Directive (PED)
Mounting: Thread or flanged variants available
Sizes:2" (DN50), 3" (DN80), 4" (DN100)
Materials: Aluminium units use EN AW 6262 T6, Stainless Steel made with 316L grade
O-ring Grades: Viton (FKM), NBR, EPDM, Chemraz, Kalrez and many others
Applications
The NGX BreakAway coupling has been designed, innovated and manufactured on the same line as a TODO-MATIC hose unit. It is capable of withstanding the same demanding applications found on both land and offshore.
The NGX is most commonly used in the chemical and LPG sectors, offering a safe and high-performance solution to any application needs. However, its abilities are versatile, and our NGX BreakAway coupling can be used to improve safety wherever hazardous or valuable products or mediums are being transferred.
For further information on TODO's NGX BreakAway Couplings, please visit the TODO website here, or don't hesitate to call us on +6221 - 458 76975.
