TODO-GAS couplings have been designed to simplify LPG handling and transfer in both liquid and vapour phases. They build on the strengths of the TODO-MATIC but have essential modifications to support those working with LPG.
TODO's LPG fittings are made with materials best matched to even the most demanding challenges found in the sector. Users can benefit from better profit margins, virtually zero leakage and improved operator safety.
FEATURES AND BENEFITS :
Within the LPG sector, many recognisable names rely on TODO-GAS couplings and accessories. Some of their benefits include :
● Available in 1-3" sizes
● Suitable for a range of different LPG applications
● Easy to connect and disconnect
● Excellent flow rate and low-pressure drop
● Ultra-low release on disconnect
● Rugged construction
Variants & Technological Information

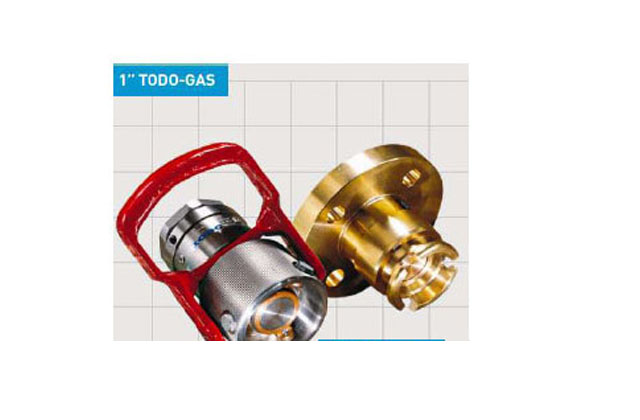

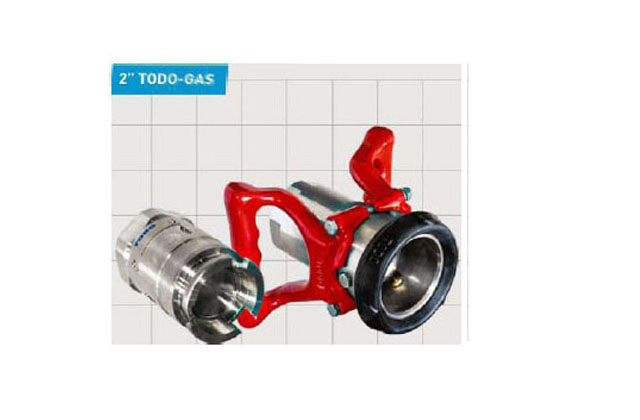

TODO-GAS 1" and 2" couplings are non-compatible with TODO-MATIC products, ensuring there is no risk of cross-contamination between LPG and other liquids or gases at the same site. Both of the size options can be made from brass and stainless steel.

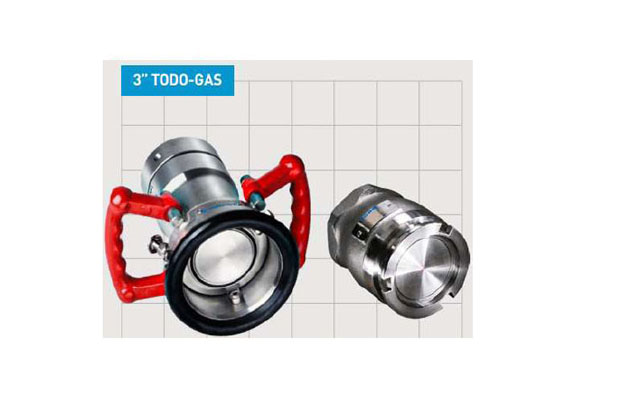

The 3" LPG fitting is used for vapour recovery, often in tandem with loading and/or unloading. All three use a push-on twist mechanism.
Max. Working Pressure: 10 bar (145 psi) for brass and 25 bar (363 psi) for stainless steel.
Product Test Pressure: 37.5 bar (544 psi).
working Temperature Range: -20 to +80 degrees C (-4 to +176 Fahrenheit) standard, -45 to 150+ degrees C (-49 to 302 Fahrenheit) options (but even lower temperatures are achievable!).
Certification: 2014/68/EU - Pressure Equipment Directive (PED).
Mounting: Thread or flanged variants available.
O-Ring Grade: Viton (FKM) 90 Shore.
Options: Pressure Equalisation Valve (PEV), colour coding, selectivity, caps and plugs, handle options.
TODO is commited to using the best materials as this helps to ease operational demend when handling and transferring LPG:
● 1" and 3" tank units and 1-3" hose units use316L Stainless Steel (DN150): Aluminium, Stainless Steel.
● 2" Tank Units use Duplex Stainless Steel
Applications
TODO is a leading provider of gas couplings and accessories for the liquefied petroleum gas (LPG) sector.
TODO-GAS couplings are used in various LPG applications ranging from heavy-duty Autogas vehicle refuelling to more advanced vapour recovery systems.
Whilst its design is similar to that of the TODO-MATIC, the TODO-GAS couplings have dimensionally different sizes of 1" AND 2" to prevent cross-contamination.
You can find out about TODO’s entire LPG range by watching their webinar on the TODO website.
All TODO LPG products are certified to the most stringent industry regulations:
● 2014/68/EU - Pressure Equipment Directive (PED) - regular surveillance
● 2014/34/EU - ATEX compliance
● ADR/RID - Transportation of dangerous goods by road and rail
● ISO 9001:2015 - Quality management systems
Caps, Plugs & Accessories
When designing LPG fittings, it is vital to consider caps and plugs for tank and hose units explicitly designed to prevent dirt and water ingress when connections aren't engaged and during changeover. TODO offers a range of these accessories to suit your application needs.
Materials include:
● 1" and 2" sizes in rubber
● 3" size in stainless steel, brass/gunmetal and aluminium
TODO also offers Pressure Relief Valves for tank units, Parking Devices, and Long Double Handles 2".
For further information on the TODO-GAS LPG Couplers & Fittings, please visit the TODO website here, or don't hesitate to call us on +6221 - 458 76975.
