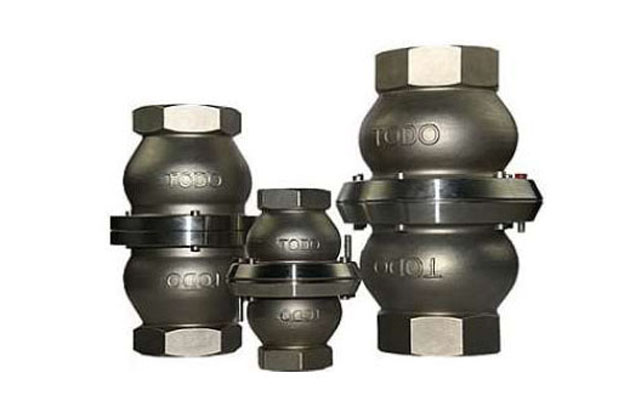

The TODO NGX Marine BreakAway coupling has been expertly designed, innovated and manufactured to eliminate spillages and damages to equipment aboard ships during the loading and unloading of hazardous liquids.
Similarly to TODO's standard NGX BreakAway, it boasts a market-leading flow rate and low-pressure drop that ensures safe and efficient transfer. However, the NGX Marine variation has been created specifically to withstand tidal motion and will only disconnect in the event of excessive straight pull-load
FEATURES AND BENEFITS :
TODO has used its experience and knowledge built from years of working closely with customers in the offshore sector to develop products that are flexible and suitable to the sometimes challenging conditions found in marine environments.
The NGX Marine BreakAway coupling is no exception to this! Some of its benefits include:
● High flow rate and low-pressure drop
● Designed to resist axial forces found at sea
● Durable construction and proven reliability even after repeated use
● No external power source required
● The ability to operate independently of off shut-off safety systems
● Easy and quick to reset on site
Variants & Technical Information
Whilst the NGX Marine BreakAway comes in a 4" size and is shipped with 3mm pins, it can also be configured according to a customer's specific needs or requirements. Due to the harsh conditions found in marine environments, this item is only available in 316L grade stainless steel.
● Working Temperature Range:
-20 to +80 degrees C (-4 to +176 Fahrenheit), making it able to rise to any challenge in the field
● Max. Working Pressure: Up to 40 bar (580 psi)
●
Product Test Pressure: Up to 60 bar (870 psi)
● Available Sizes: 4" (DN100)
● Threads : BSP (according to ISO 228), NPT (according to ANSI B1.20.1), Others available upon request
● Flanges : PN10/16 (according to EN 1092-1), PN25/40 (according to EN 1092-1), ANSI Class 150 (according to ANSI B16.5), ANSI Class 300 (according to ANSI B16.5), Others available upon request
● Materials : Stainless steel only
● O-ring Grades : Nitrile (NBR or Burns), Viton (FKM), EPDM, Kalrez (FFKM), FMVQ, Chemraz (FFKM)
Applications
The NGX Marine BreakAway couplings have been innovated specifically for offshore-sector customers to allow safe and easy operation, providing the user with complete peace of mind.
TODO DryBreak and Marine BreakAway couplings are renowned within the industry for their reliability under tough conditions and have been specified by the oil majors for decades.

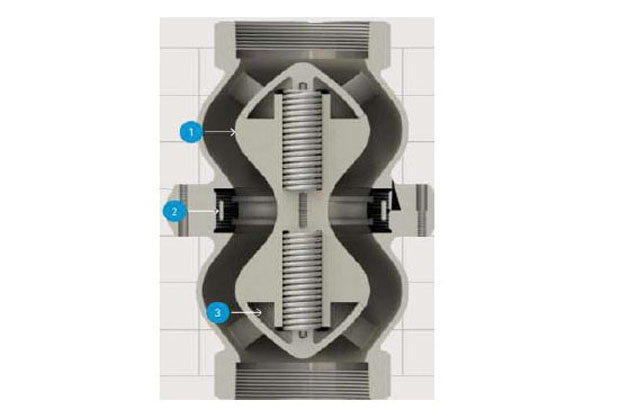

If an excessive load is detected, the coupler shuts the valves. It then initiates disconnection to ensure operator safety and minimise damage when loading and offloading hazardous products or mediums aboard ships. In order to maintain high standards,
all products within the TODO offshore range are subject to stringent assessments from notified bodies like the American Bureau of Shipping.
Again this is to ensure maximum user safety in an environment presenting many challenges and risks.
For further information on TODO's NGX Marine BreakAway Couplers, please visit the TODO website here, or don't hesitate to call us on +6221 - 458 76975.
